Brand: Sim-Motion GmbH

Product Code: TR160-BLK-DDM-SEAT

Availability:In stock

999,00 €
Incl. VAT. plus shipping
999,00

Qty

Trak Racer’s TR160 - Pre Order -

has infinite adjustment and the most expandable and rigid components in the business. The strength of the TR160 will ensure no flex is experienced and no loss of force feedback, even with the strongest servos on the market.

BLACK ANODIZED
160mm x 40mm
Premium Aluminium Chassis

Our Premium Fasteners along with our high-quality aluminium are able to withstand vibrations and also high levels of longitudinal and transverse forces. After completing exhaustive hours of testing with Direct Drive wheels including MIGE/OSW up to 30Nm and SimExperience AccuForce we can confidentially guarantee that the TR160 is able to withstand greater forces than 30Nm

Wheel Deck with Full Slide and Angle Adjustment

The more Traditional and Fully Adjustable Wheel Deck Mount is fully adjustable (back/forth and up/down angle) and is made out of 9mm thick Laser Cut Carbon Steel. This bracket is compatible with the following wheels:
  •     Fanatec including CSW V1, V2, V2.5 (without mounting adapter), CSL Elite, Forza Motorsport CSR, Porsche 911 GT2/V2
  •     Thrustmaster including T180/T100/T150/TMX, T300/TX, T500, TS-PC/TS-XW/T-GT
  •     Logitech including G25/27/29/920
  •     Direct Drive including Simucube (with brackets), SimExperience AccuForce V2, Fanatec DD1 DD2
  •     Various MIGE Mounts and more
  •     SimuCube 2 Sport, Pro, Ultimate
  •     Contact us if your wheel is not listed here

Adjustable Two-way Pedal Mount

The TR160 Pedal Mount can be mounted to sit above or below the 160mm high aluminium chassis and pre-drilled for all major brand pedals. The clever design mounts inside the chassis for ground-level height or outside the chassis for above chassis height.

The pedal baseplate is made out of thick carbon steel and has pre-drilled holes for all major brand pedals (see list below) and slots for left/right adjustment with Heusinkveld pedals and others. The pedal plate can be angle adjusted with the locking lever and moved forwards and backwards. This bracket is compatible with the following pedals (and more) :
  •     Fanatec including CSL Elite Pedals, ClubSport V1/V2/V3
  •     Thrustmaster including 2-pedals (all), T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500
  •     Heusinkveld including Ultimate, Sprint and Pro
  •     Quaife Throttle Pedal and Brake
  •     HPP PRX 3P
  •     Logitech G Series

Contact us if your pedals are not listed here

What's Included

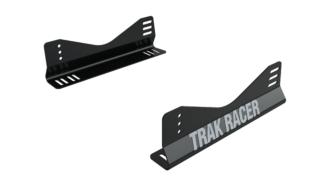

  •     BONUS Seat Mounting Brackets

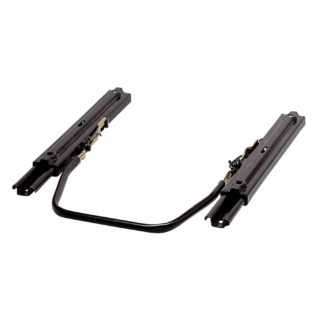

  •     BONUS Seat Sliding Rails and Adjustment Bar
  •     BONUS Rubber Feet to protect floors and level your rig
  •     BONUS Adjustable Gear Shift Mount
  •     160mm x 40mm Black Anodized Aluminium Chassis
  •     120mm x 40mm Black Anodized Aluminium Wheel Supports
  •     80mm x 40mm Black Anodized Aluminium Shifter
  •     Front-Mount Fully Adjustable Direct Fit Wheel Mount
  •     Fibreglass Race Seat
  •     Fully Adjustable Pedal Mount (pre-drilled for pedals)
  •     All Mounting Screws, Brackets and Fixtures included
  •     Assembly Tool Kit Included

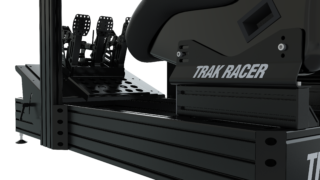

Frame/Chassis Features

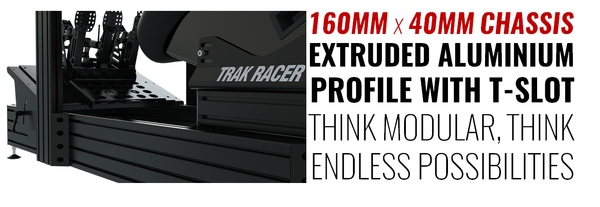

    Constructed from high quality extruded aluminium in different profiles sizes including 10-Slot 160 x 40mm, 8-Slot 120 x 40mm and 6-Slot 80 x 40mm
  •     580mm wide and 1450mm long for firm stance when racing
  •     Low ground clearance with hard wood rubber floor protectors
  •     Finished in black anodized high quality aluminium

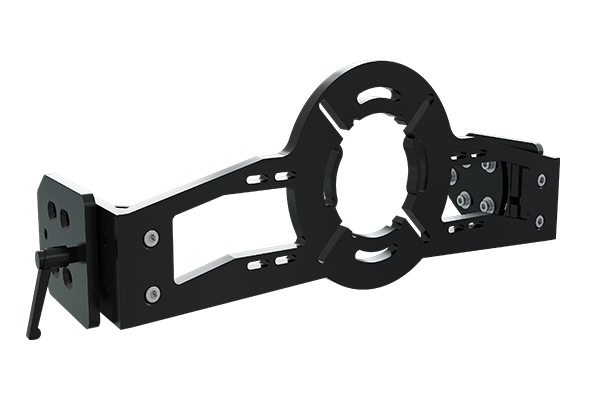

15mm Thick Direct Fit Wheel Mount

  •     Full adjustment including angle and sliding function
  •     Designed to fit SimExperience, Lenze, Mige, OSW, Fanatec, SimuCube and more

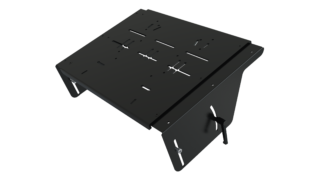

Adjustable Pedal Mount Features

  •     Unique Bracket Design allows you to position the pedal plate above, or below the top of the chassis
  •     Hassle Free Angle Adjustment with the Tool-free screw
  •     Fully adjustable bracket for both angle, height and slide
  •     Thick, no-flex Carbon Steel Construction
  •     Pre-drilled mounting points for all major brand pedals

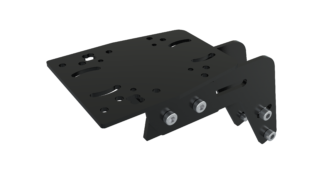

Reinforced Left or Right-Side Mounting Gear Shift Mount Features

  •     The Distance Slider mount allows you to fine-tune the mount to the most ergonomic position for you
  •     Angle Adjustment enables you to face the shifter mount inwards, flat or outwards for more customised adjustability
  •     Pre-drilled mounting points for all major brand shifters including Heusinkveld, DSD, Thrustmaster, Fanatec and more

Fibreglass GT-Style Race Seat Features

  •     Premium race-ready high-grade seat with hard back
  •     Adjustable driving position seat
  •     Ergonomically designed for extended periods of use
  •     High density foam construction
  •     Weight Restrictions: Up to 160kg (352 lbs)
  •     Suggested Waist Size: Under 36”
  •     Contact Trak Racer for other available seat sizes

    Specifications:

    •     Includes all aluminium profiles and mounting gear
    •     Main Chassis is a 10-Slot 160 x 40mm profile
    •     Steering wheel uprights are 8-Slot 120 x 40mm profiles
    •     Steering wheel height adjustment up to 740mm
    •     Gross weight including all brackets and fixtures: 63KG PLUS Wheel Mount
